The automotive industry is undergoing significant transformations due to the introduction of innovative technologies such as 3D printing. This technology revolutionizes car design, manufacturing, and assembly, offering numerous advantages that radically change the industry's landscape, from amateur production of retro car parts to the optimization of large factory production chains. In this article, we will explore various aspects of 3D printing for the automotive industry, its applications, and prospects for the future.
Overview: Why use 3D printing in the automotive industry?
Customization
3D printing offers an economical and flexible way to manufacture one-of-a-kind car parts, allowing automakers and tuning workshops to satisfy the most extravagant demands of their customers, up to the manufacture of carbon body kits in a single copy.
Design Innovation
3D printing allows you to create complex, intricate designs that would be difficult or impossible to implement with traditional production methods. This is especially useful for creating custom functional parts, such as topologically optimized body structures or unique parts.
Simplified Assembly
Combining parts is a significant advantage of 3D printing, as it enables multiple parts to be merged into a single, more complex component. Interestingly, this complex product is only tricky for traditional production methods but relatively simple for 3D printing. It simplifies the assembly process, reduces material consumption, and reduces assembly time or costs.

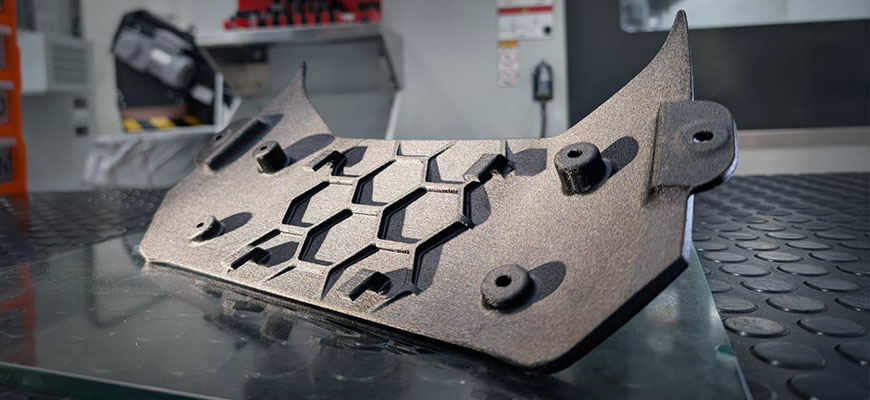

Functional 3D-printed car parts
Recent advances in 3D printing technology and materials have made it possible to manufacture small and medium-sized end-use parts, including external components, internal parts, and structural elements.
Motorsport Applications
3D printing is widely used in motorsport for the manufacture of durable and precise wind tunnel test parts, as well as end-use automotive components.
Industrial 3D printing in car production
Integrating 3D printing into car manufacturing marks a fundamental shift in the industry. This advanced technology is not just a tool but also a catalyst for innovation within the company's production processes. Using the capabilities of additive manufacturing, automakers can optimize their production chains, create tools that simplify production, reduce the lead time for internal orders for parts, and bring production workshops to a new level of creativity.
An era has dawned in which waiting months to obtain desired outcomes is no longer necessary. Now, one can swiftly actualize any concept within the department and integrate it into the business at a pace ten times faster than conventional methods.
Why are car enthusiasts increasingly turning to 3D printing services?
Сar enthusiasts and professional engineers are increasingly attracted to the benefits of 3D printing services. This technology allows you to solve previously impossible tasks in a matter of weeks and show your creativity to the maximum.
Optimizing Costs
With 3D printing, motorists can create customized settings without losing control. This technology allows you to create custom parts and accessories that reflect a person's unique preferences.
Economic Production of Small Batches
3D printing enables the production of small batches at significantly lower costs compared to traditional methods. It allows you to design your own solution in a CAD system and test it directly in your workshop. Once tested, you can seamlessly start small-scale production of the necessary parts using multiple printers. Compared to traditional manufacturers, this cost reduction leads to significant savings in producing regularly needed parts that can no longer be bought in stores or car service stations.
Spare parts for Retro Cars
For those who value vintage cars, it solves the problem of finding rare or outdated parts. By reproducing these components using 3D printing, retro car owners can preserve the historical significance of their favorite cars.
Body Kits
Tuning connoisseurs often want to get a customized body kit for their car. Recently, there were a few ways to satisfy your creativity and show your individuality: contacting tuning studios or buying a mass-produced body kit. Now, enthusiasts have much more space available for creativity. They can create body kits from scratch that no one else in the world has and maximize their individuality.
Improvement of Factory-made Components
By using 3D printing, enthusiasts can improve the functionality of some factory-made components, resulting in a more productive car. This technology also allows for the improvement of existing designs and the creation of innovative solutions.
What kind of 3D printer is suitable for such complex tasks?
3D printing technology has the potential to revolutionize the automotive industry. However, to succeed, it must meet the specific needs of engineers who design and develop tools, spare parts, and new processes.
A 3D printer for professional use should be capable of working with a wide variety of high-temperature materials, such as ABS GF and similar materials. It should also utilize effective support structures, particularly water-soluble supports, to minimize labor costs and maximize efficiency.
Additionally, the printer should have a print head that can operate with two materials simultaneously, allowing for the creation of prototypes, test parts, and final products in realistic conditions.
Also, it is essential to provide pre-prepared material profiles with relevant settings and pre-configure them with the desired temperature, airflow, and other parameters. This will save time and effort in testing, which is particularly important for production, as every minute counts and is valuable. Equipment downtime and wasted time on testing consume significant financial resources, prolong the development cycle, and, consequently, reduce the company's overall competitiveness.
Case Study

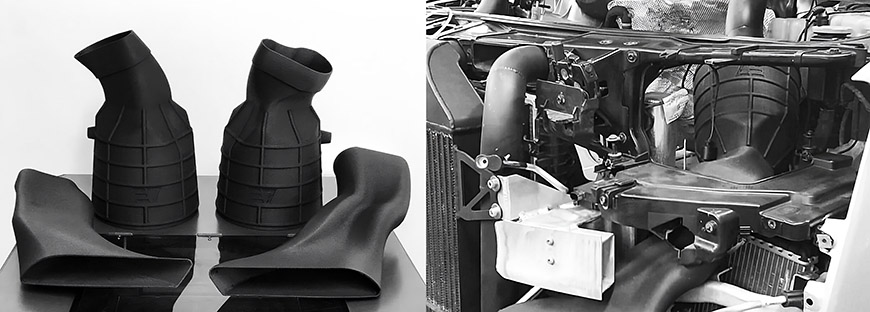

The Challenge: Crafting a Cold Inlet System for the Audi S8
The task was to prototype and fabricate a cold inlet system for the Audi S8, requiring the creation of complex geometric shapes using a material with superior properties to traditional filaments like PLA, PETG, or ABS.
The goal: To enhance the efficiency of the power units in a racing car, pushing the boundaries of performance and design.
The process began with 3D scanning to capture the vehicle's dimensions and spatial requirements for the cooling and intake air system. Then, a team of engineers designed a pipe and an intercooler. Prototypes were crafted using PLA to verify and optimize the result. The final product was fabricated with ABS GF-12 material on the Epitum L 3D printer.
In this case, 3D printing made it possible to use materials with lower heat capacity and thermal conductivity than aluminum, which is traditionally used to manufacture such pipes. This approach is particularly effective for car parts 3D print, where material properties and accuracy are critical. In addition, the precision achieved by 3D printing surpasses manual manufacturing methods, providing the optimal performance and functionality that the engineer intended without technical limitations.
Epitum L printers provide versatility and reliability, allowing the use of a wide range of structural materials adapted to high-load conditions and extreme temperatures. With high precision and a wide working field, these 3D printers allow engineers to unleash their creativity without restrictions, revolutionizing car customization.
Improving factory performance is always intriguing and arouses the interest of engineers, but sometimes, there are more mundane tasks that require no less attention.

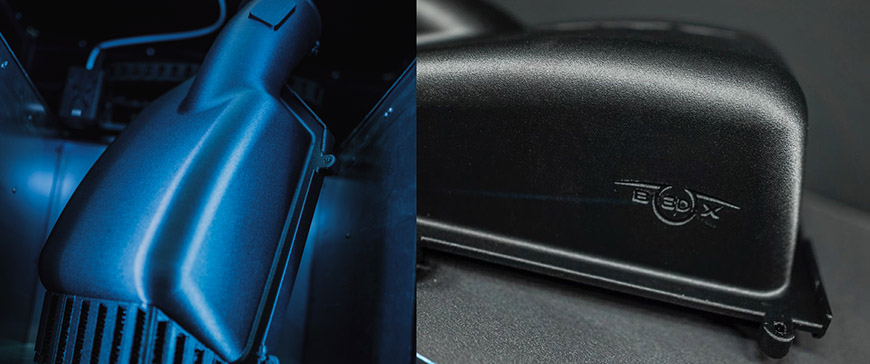

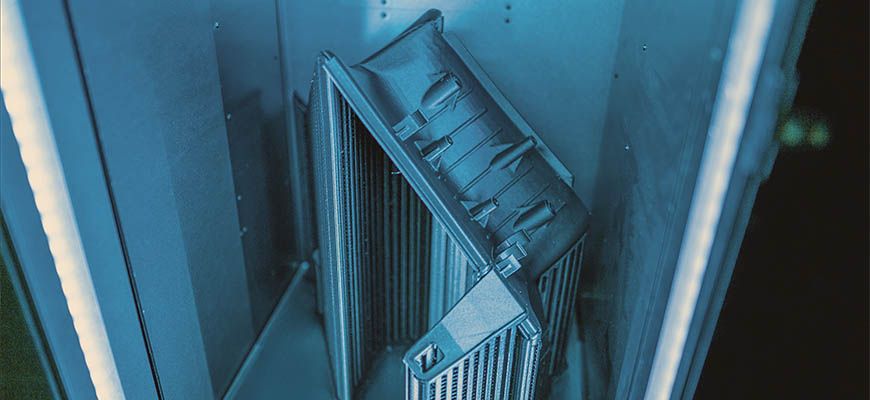

3D printed air filter for Dodge RAM
Сar enthusiasts worldwide are faced with finding suitable spare parts for their favorite cars, which is not always possible. These can be outdated models, rare vehicles, or cars from other countries, delivering spare parts that can be very expensive and take up to several months. In this case, the task was to create the perfect air filter box for the Dodge RAM.
The client's instructions were clear: design an air filter box for the Dodge RAM that would not only replicate the original factory version but also improve performance characteristics. This required a delicate balance between design preservation and innovation.
To avoid the inconveniences of traditional methods, it was decided to manufacture an air filter housing made of composite ABS plastic instead of conventional aluminum sheet.
The team made a model based on the image of the original air filter and started production. The Epitum JL printer was chosen for its ability to work with composite high-temperature materials that will allow the product to be produced for end use. In just 120 hours, high-quality parts were printed, demonstrating excellent design and mechanical characteristics.
The result was truly extraordinary. The team turned the concept into a fully functional prototype and even the final product in just a week. This achievement would have been difficult and expensive with traditional production methods. Engineers continue to shape the future of automotive customization using the transformative power of 3D printing and advanced technology. This allows them to create genuinely functional parts for cars and improve them without relying on massive production capacities.
Carbon Fiber Power
In addition to products that improve performance, products that enhance external characteristics and allow the car owner to show his personality are equally important.

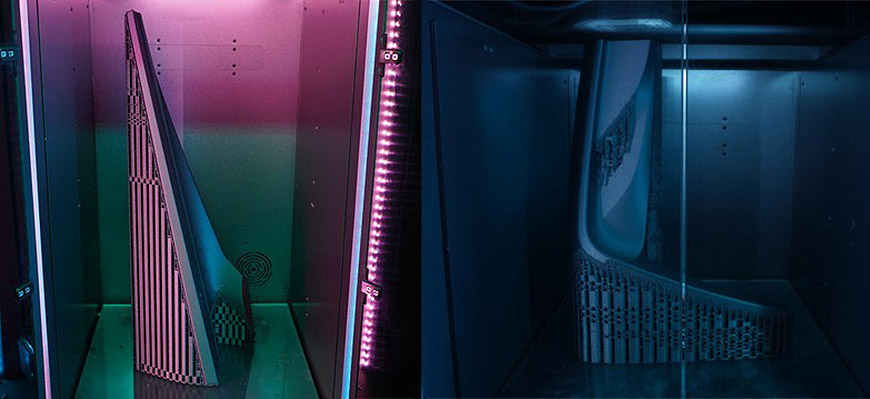

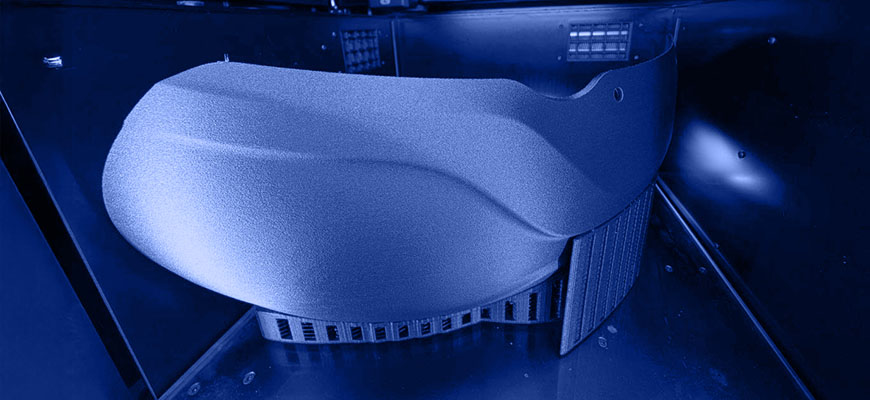

When it comes to automotive aesthetics, 3D printing for automotive and motorcycle parts has revolutionized the creation of custom carbon fiber components. One prime example is CFA, a company known for merging creativity and cutting-edge technology. CFA specializes in producing both interior and exterior details made from carbon fiber, taking automotive design to an entirely new level. To streamline the production process, CFA uses four Epitum JL 3D printers for large-scale production.
The task required creating lightweight but durable master models using a material capable of withstanding high temperatures and providing exceptional strength.
The process of developing CFA parts includes several carefully planned stages: 3D scanning, modeling, 3D printing, validation of the master model, post-processing with liquid putty and varnishing, manufacturing of composite tooling that can withstand the desired temperatures, and, finally, the manufacture of carbon fiber parts. Master models are brought to life using ABS filament with carbon fiber, which provides minimal shrinkage even on large products, increased strength, rigidity, heat resistance, and suitable processing properties.
The advantages of 3D printing compared to traditional milling machines are diverse. 3D printing makes it easy to create complex shapes even in office environments without unnecessary noise and waste. Unlike milling machines, which require dedicated facilities and operators, 3D printers minimize workplace risks, reduce labor costs, and offer cost-effective solutions.
The subsequent processing of 3D printed car parts includes simple coating and varnish application, which contrasts with the complex finishing requirements of milled components, demonstrating the efficiency and versatility of modern additive manufacturing. Using 3D printing capabilities, CFA continues to push the boundaries by creating custom carbon fiber parts that exemplify aesthetics and individuality.

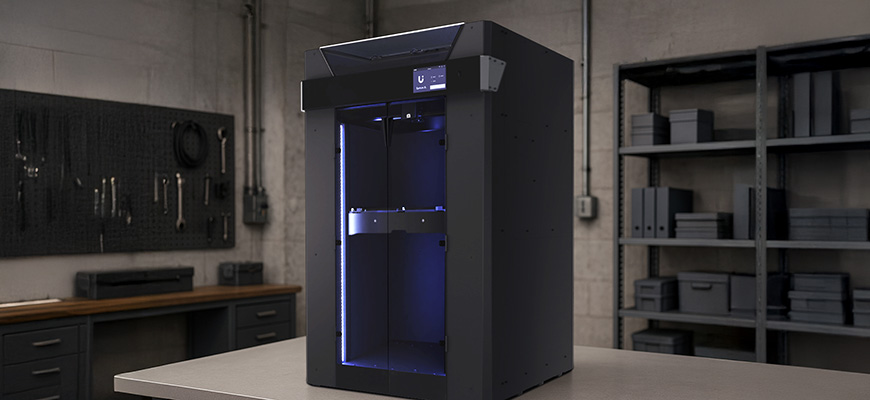

Epitum 3D Printers
3D printing has enabled many industry innovations and significantly accelerated all processes. The Epitum team is incredibly proud that the JL and L 3D printers are ideal for such tasks. They are designed to work with composite materials. The all-metal extruder is installed immediately in the factory kit, and the material settings are pre-selected and optimized.
Among other things, Epitum JL 3D printers are equipped with innovative JetSmart technology, which provides fast nozzle switching in less than a second. This saves a staggering amount of time and makes printing with supports not a painful operation that takes a lot of time away from busy professionals, but a convenient tool that allows you to move to a new level of quality and speed of work, and reduces plastic waste to a minimum.
An active heated chamber up to 90 degrees Celsius increases sintering ability and improves products' physical properties. The result is comparable to industrial 3D printers but at a significantly lower cost.
3D printers have truly revolutionized the design and production of 3D printed car parts, opening new possibilities for creativity and functionality. It’s now easier than ever to learn how to create 3D print car parts that not only enhance the aesthetic but also improve the performance of both cars and motorcycles. Whether you are looking for car parts for a specific design or need a 3D printer for motorcycle parts, the latest technologies are making it possible to bring your visions to life. Thanks to innovations in 3D printing, it is the best time for enthusiasts and professionals to embrace this transformative technology.
